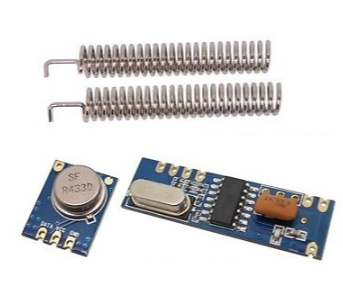

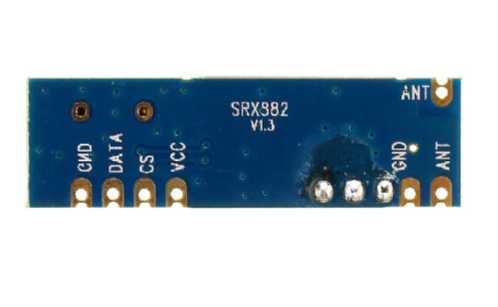

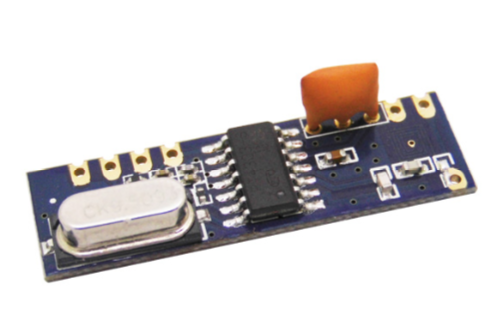

This is 433MHz 100 Meters STX882 ASK Transmitter Module SRX882 Superheterodyne Receiver Module Antenna. STX882 is an ASK transmitter module with small size, ultra-high power, low harmonics. With high stability, it is achievable at 50mW power when the voltage is 3.6V, it is the maximum transmitter power module under the same voltage in the market. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient. SRX882 is a superheterodyne receiver with a micropower and strong driving force, which is a supplementary STX882 / STX888 module. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient. Suitable antenna: SW315-TH23 Gold plated spring antenna SW315 – TH23 is a gold plated spring antenna. It is a dedicated antenna that is designed for a wireless communication system (315MHz). It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability. SW433-TH22 Gold plated spring antenna SW433-TH22 is a gold plated spring antenna, It is a dedicated antenna designed for a wireless communication system (433MHz). It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability. Pin Diagram 1: ANT, Connect 50 Ohm Antenna 2: GND, Connect Power Ground 3: VCC, Connect Power Positive 4: CS, Modules Enable Pin, Floating or Connected to High-Level Work, Sleep When Connect Ground 5: DATA, Data Input 6: GND, Connect Power Ground 7: ANT, Connect 50 Ohm Antenna Features : Frequency Range: 433 MHz. ASK /OOK modulation mode. Super anti-power interference. Low-power sleep less than 1μA. Low self-radiation. Small size. Frequency stability and reliability. Various international testing standards. Antenna dimensions: 36 x 5.5 mm(HxD). Specification: SRX882 Receiver: Supply Voltage: 2.4 – 5.5V. Operating Temperature Range: -30°c ~ 85°c. Latency: 20ms @315MHz, 9ms @433MHz. Consumption: 2.5mA @315MHz, 2.8mA @433MHz. Frequency Range: 315MHz-433.92MHz. Sensitivity: -110 dBm @1.2Kbps. Air Rate: 0.1-9.6 Kbps. Receiver bandwidth: 200 KHz. Dimension (mm): 35 x 10.5 x 6. Weight (gm): 2. Package Includes : 1 x STX882 Transmitter Module. 1 x SRX882 Receiver Module. 2 x Antennas. Category: IR and RF Transmitter and Receivers
