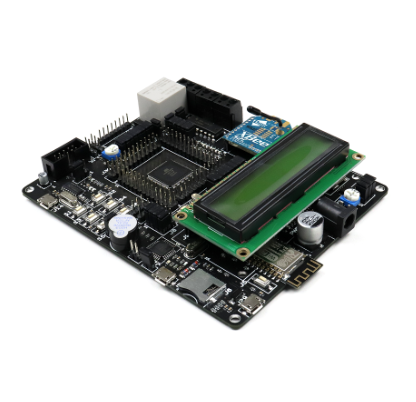

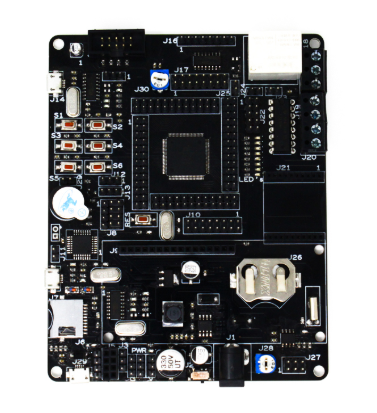

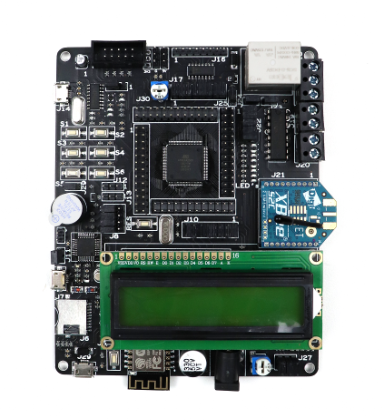

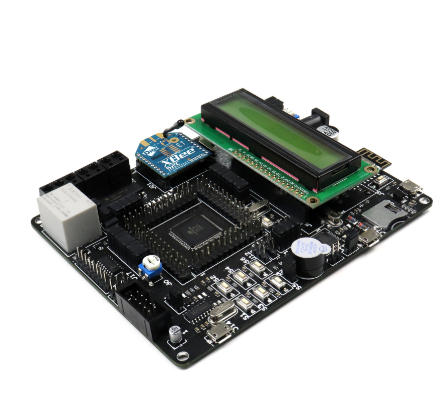

SmartElex ATmega2560 Development Board with LCD1602 LCD Display

SmartElex ATMEGA2560 Development Board is a powerful development platform based on ATMEGA2560 microcontroller which is one of the most feature rich AVR microcontrollers from Atmel, featuring 256K Flash, 8K RAM, 86 I/O lines arranged in nine 8 bit ports, 16 ADCs, 4 UARTs, 6 timers, 8 interrupts and much more. This board is ideal for developing embedded applications involving high-speed wireless communication, USB based data logging, real-time data monitoring, and control etc. The Board has lots of peripherals such as LCD, SD card, XBee wireless adaptor board, CH340 USB to Serial converter, 2 servo motors connector, DS1307 based Real-Time Clock, UL2003 7 channel driver, L293D dual DC motor driver, 1 Potentiometers, 8 switches, 8 LEDs, Buzzer, Relay and JTAG interface etc. The I/O pins on the microcontroller can be accessed from Male Burg pin connectors. It supports the operating supply voltage between 7V to 15V and has built-in reverse polarity protection.   Specifications and Features: Microcontroller: ATMEGA2560 with 16 MHz crystal with On-Board USBASP Programmer. Power: 7 to 15 VDC with Reverse Polarity Protection. 2.4GHz ZigBee (XBee) wireless module adaptor 2×16 Character Alphanumeric LCD. SD card Holder. CH340G USB to Serial converter. ESP8255 Adaptor interface with USB to Serial Converter. Connector for 2 servo motors. DS1307 based Real-Time Clock with Battery Backup. ULN2003 7 channel 500mA driver. L293D 600mA Dual DC motor Driver. 1 Analog Potentiometers, 8 Switches, 8 LEDs, Buzzer. Switches: Reset, Power (ON-OFF SWITCH). Male Burg Pin Connectors for all ports. Package Includes: 1 x SmartElex ATmega2560 Development Board. 1 x LCD1602 Parallel LCD Display SKU: PGI-00631968 Category: Development Board
