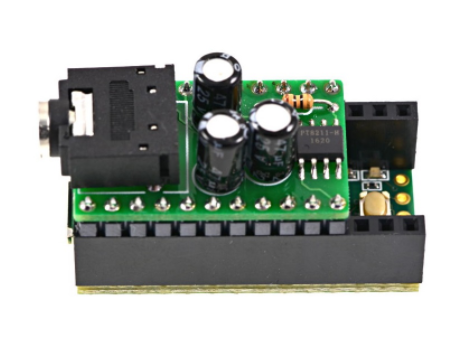

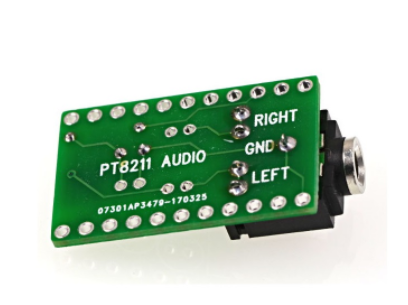

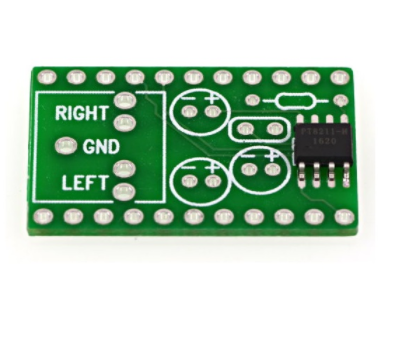

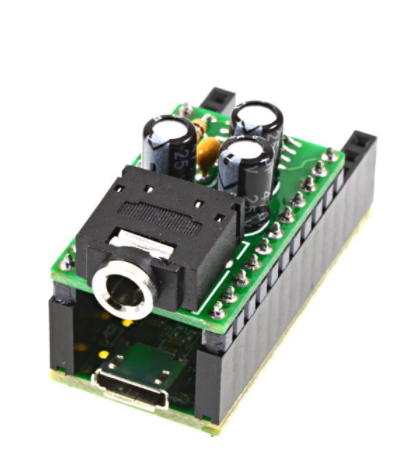

PT8211 is a dual channel, 16 bit Digital-to-Analog Converter IC utilizing CMOS technology specially designed for the digital audio applications. The internal conversion architecture is based on an R-2R resister ladder network, an internal circuit is well matched and a 16 bit dynamic range is achieved even in whole supply voltage range. PT8211 also enhanced the performance of timing responsibility in a digital serial bus, in a company with the fast switching R-2R network that makes 8X oversampling audio signal is also supported. PT8211 can be supported by a wide range of sample frequency, it is compatible with TDA1311 by functionally. Its digital input timing format is Least Significant Bit Justified(LSBJ), or so-called Japanese input format. Digital code format is two’s complement and MSB first. PT8211 is available in 8-pin SO or DIP package. Application: Digital Audio Equipment CD ROM/VCD Multimedia Sound Card MPEG Decoder Card Pin Configuration: Signal Teensy Pin PT8211 Pin BCK 9 1 1 DIN 22 3 WS 23 2 3.3V 3.3V 5 GND GND 4 Features: CMOS technology. Support 3.3V bus input level Low power consumption. Two audio channel output in the same chip. 16-bit dynamic range. Low total harmonic distortion. No phase shift between both output channel. Available in 8 pins, SO or DIP package. Package Includes: 1 x PT8211 Unassembled Audio Kit for Teensy 3.x SKU: PGI-00199878 Category: Development Board
