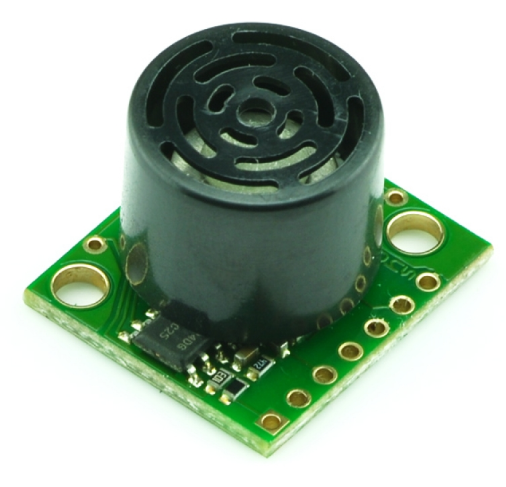

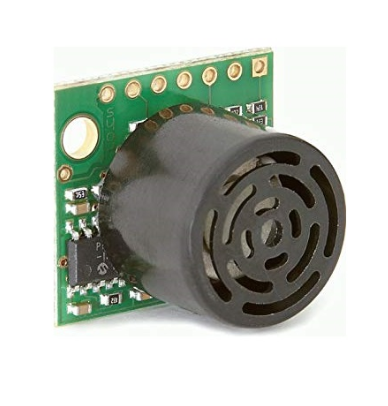

This MB1000 LV-MaxSonar-EZ0 Module is for indoor use only. Features of the MB1000, LV-MaxSonar-EZ0, include one-inch resolution, the widest and most sensitive beam pattern of any unit from the LV‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 6 inches to 254 inches, a 20Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial. This makes the MB1000 an excellent choice for use where high sensitivity, wide beam, or people detection is desired. The MB1000 from the LV‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications. The LV‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from LV‑MaxSonar‑EZ sensor line. This makes the LV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired. In addition, the MB1000 learns the ringdown pattern when commanded to start ranging. This helps the sensor to learn the environment and can help the sensor ignore obstacles that are present at power-up. Product 3D Models Key Shot IGES File ACIS 7.0 File Solid Works Part STL File STEP File ParaSolid Part We have the range of MaxBotix Ultrasonic Sensors available in our online shop which can fit your specific ranging requirement, check them now by clicking below MaxBotix Ultrasonic Sensor Features : Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches Maximum Range of 254 inches (645 cm) Small, lightweight module Designed for easy integration into your project or product The widest beam of the LV-MaxSonar-EZ sensors Great for people detection applications Package Includes: 1 x MB1000 LV-MaxSonar-EZ0 Module Tutorials : Sensor Selection, Setup, and Troubleshooting SKU: PGI-007476 Category: Maxbotix Ultrasonic Sonar
