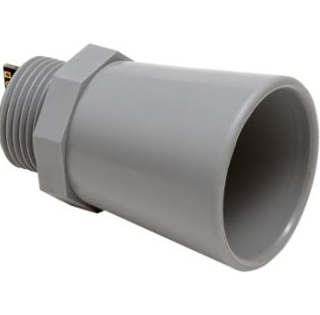

The MaxBotix MB7374 HRXL-MaxSonar-WRST7 sensor line is a cost-effective solution for applications where precision range-finding, low-voltage operation, space saving, low-cost, and IP67 weather resistance rating is needed. This sensor component module allows users of other, more costly precision ultrasonic snow depth measurement rangefinders to lower the cost of their systems without sacrificing performance. Additionally, this sensor line allows cost-sensitive designers to choose this precision sensor as a performance upgrade over other lower performance sensors. The HRXLMaxSonar-WRS sensor line provides high accuracy and high-resolution ultrasonic proximity detection and ranging in air, with an IP67 weather resistant rating. This sensor line features 1-mm resolution, target-size and operating voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation and optional external speed-of-sound temperature compensation. Features Maximum range of 5-meters Detects objects from 1-mm and ranges to objects from 50-cm to maximum range. Objects closer than 50-cm are typically reported as 50-cm. The interface output formats are pulse width, analogue voltage, and digital serial in either RS232 or TTL. Factory calibration is standard. Package Includes: 1 x MaxBotix MB7374 HRXL-MaxSonar-WRST7 Module SKU: PGI-00234999 Category: Maxbotix Ultrasonic Sonar
