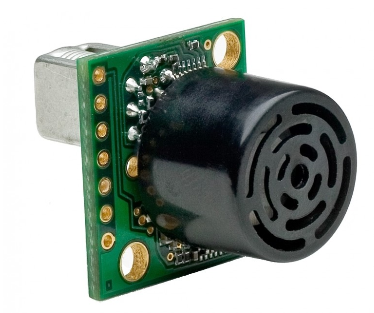

Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor

This Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor Module is for indoor use only. Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance and narrowest beam width of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial. The MB1240 is a great choice for applications where only larger objects need to be detected. The MB1240 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications. In addition, the MB1240 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources. Product 3D Model These 3D model files will download with a different product name. Key Shot IGES File ACIS 7.0 File Solid Works Part STL File STEP File ParaSolid Part   We have the range of MaxBotix Ultrasonic Sensors available in our online shop which can fit your specific ranging requirement, check them now by clicking below MaxBotix Ultrasonic Sensor Features :  Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width Virtually no dead zone, objects closer than 20 cm range as 20 cm Small, lightweight module Designed for easy integration into your project or product Real-time automatic calibration (voltage, humidity, ambient noise) Firmware filtering for better noise tolerance and clutter rejection 200,000 Hours Mean Time Between Failure Narrowest beam of the XL-MaxSonar-EZ products Highest noise tolerance of the XL-MaxSonar-EZ products Great for large target applications Maximum range of 765 cm (300 inches) Hardware gain of 250 Short range, narrow detection zone for small targets Package Includes : 1 x Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor Tutorials : Sensor Selection, Setup, and Troubleshooting SKU: PGI-0011639 Category: Maxbotix Ultrasonic Sonar
