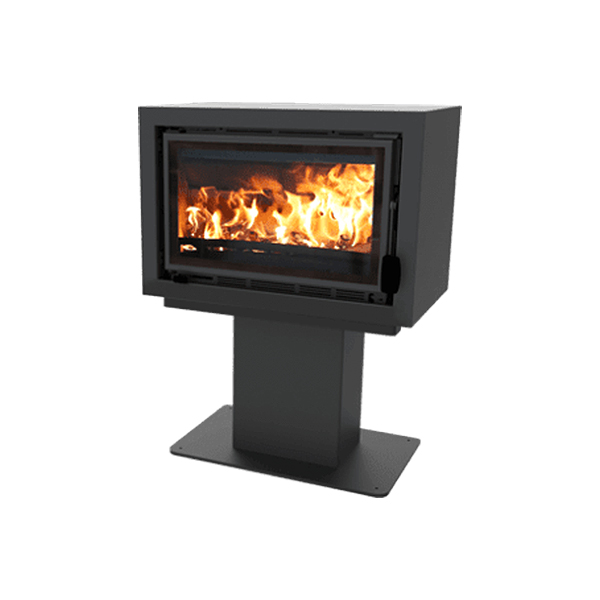

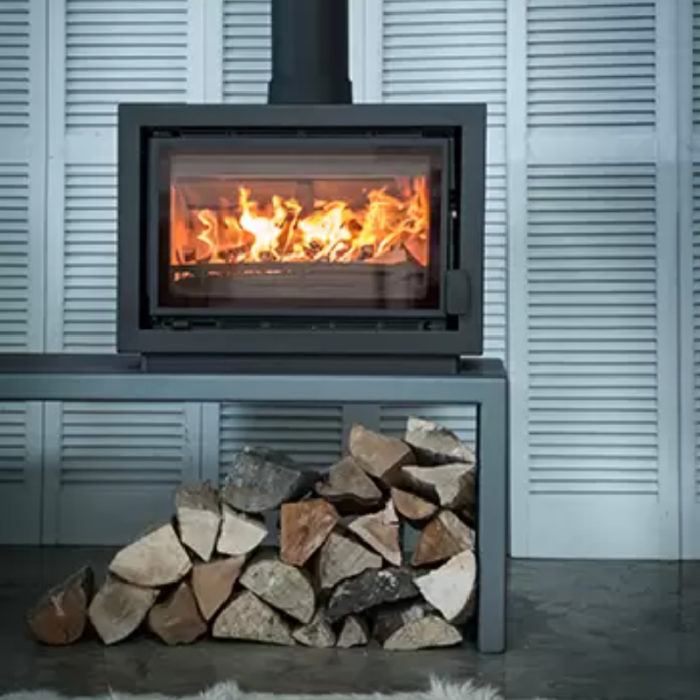

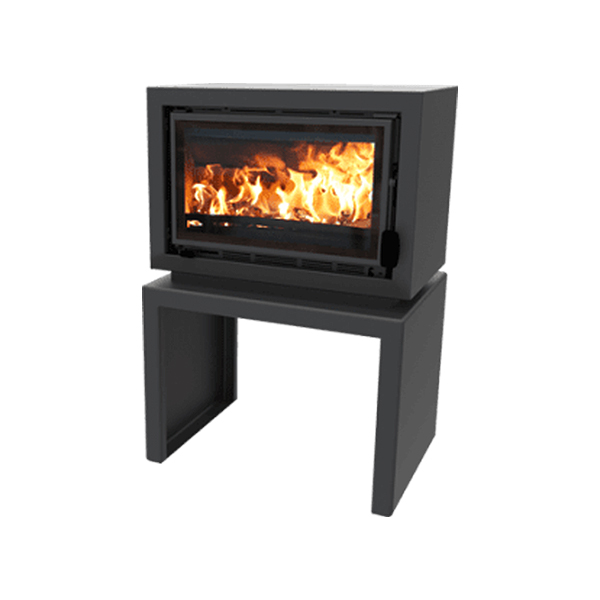

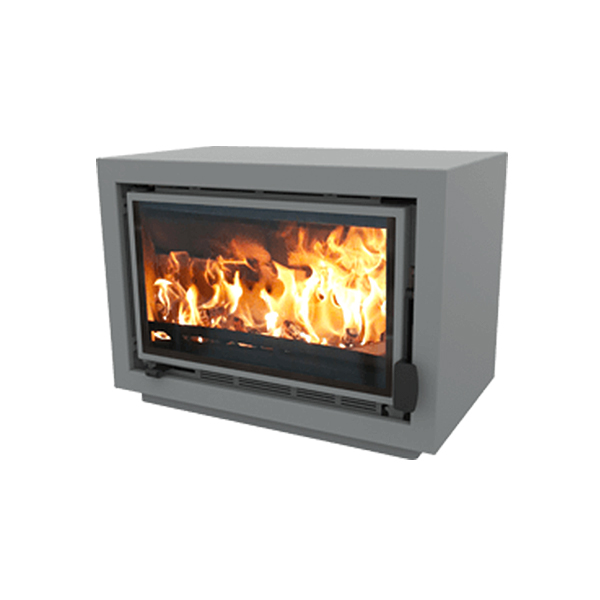

Description Charnwood Bay BX Stove The Bay BX is the latest addition to the Bay range. The firebox and frame of the stove is the same as the Bay VL but features an outer casing transforming the appliance into a freestanding stove. The Bay BX can be installed directly onto a hearth or we offer a choice of three base options to raise the stove up: bench stand, centre stand or store stand. Both the stove and base options are available in eight colours. RATED OUTPUT 5kW to room (range 2-7kW) NET EFFICIENCY 81% FLUE OUTLET Top 150mm (6”) dia MAX LOG LENGTH 463mm (18”) MIN DISTANCE TO COMBUSTIBLES Side: 150mm Rear: 270mm With insulated flue: Side: 100mm Rear: 130mm Technical Specifications
