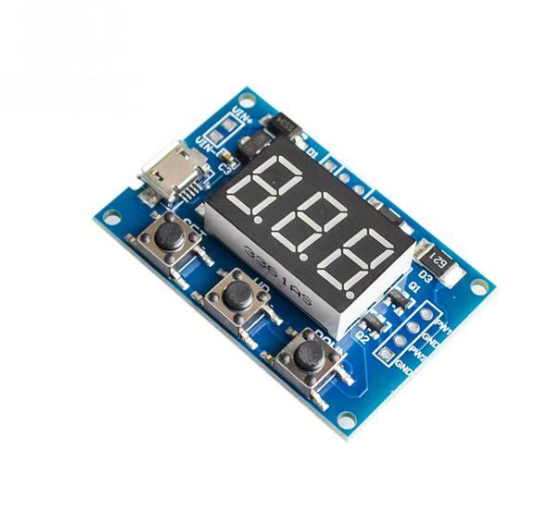

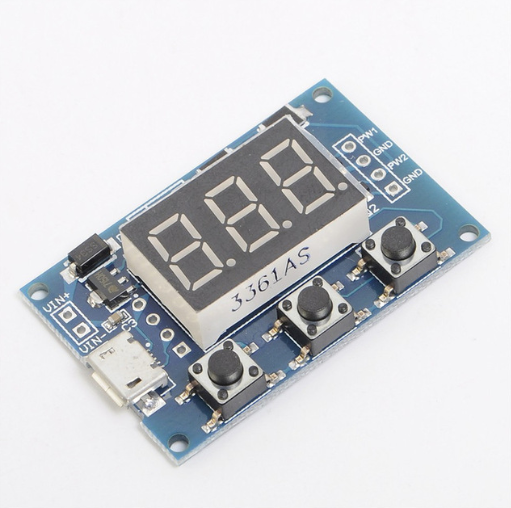

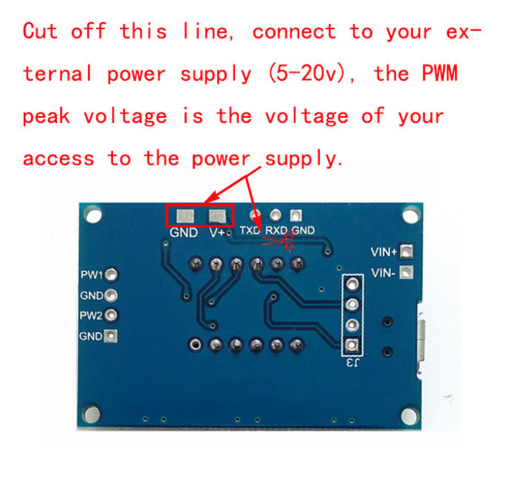

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module to generate square wave for experiment development. This is used to drive stepping motor driver’s square wave, Generate adjustable pulse for MCU using, Generate adjustable pulse for controlling relative circuit (PWM adjust lightspeed etc). Serial Port Control: Communication Standard:9600 bps Data Bit:8 Stop Bit:1 Verify Bit: none Flow Control: none Setting PWM Frequency: “S1FXXXT”: set PWM1 frequency as XXX HZ (001~999) “S1FXX.XT”: set PWM1 frequency as XX.X KHZ (00.1~99.9) “S1F:X.X.X.T”: set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.) “S1”: PWM1 “S2”: PWM2 “F”: frequency “D”: duty cycle “T”: stop sign bit Setting PWM Duty Cycle: “S1DXXXT”:set PWM1 duty cycle as XXX；(001~100) “S2DXXXT”:set PWM2 duty cycle as XXX；(001~100) Setting successfully back: DOWN Setting unsuccessfully back: FALL Parameter Setting: The module has a 3-channel key: Set, Up, Down By short press SET key,can shift display 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle);before shifting,there will be corresponding parameter name flashing Directly press UP, DOWN key to modify the current parameter value 2-channel PWM is set 3 kinds frequency value, in frequency display interface, by long press SET to shift,3 kinds frequency’s duty cycle is the same （XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz; X.X.X.:1Khz~150Khz). Application Fields: As square wave generator to generate square wave for experiment development Used to drive steeping motor driver’s square wave Generate adjustable pulse for MCU using Generate adjustable pulse for controlling relative circuit (PWM adjust light speed etc) Package Includes : 1 x 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module. Category: Electronic Components & IC's
