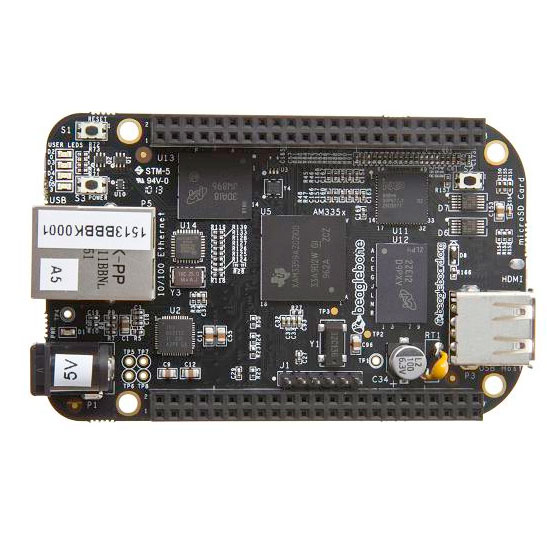

Description What is BeagleBone® Black? BeagleBone® Black is a low-cost, high-expansion, community-supported development platform for developers and hobbyists. Users can boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable. Like its predecessors, the BeagleBone® Black is designed to address the Open Source Community, early adopters, and anyone interested in a low cost ARM® Cortex™-A8 based processor. It has been equipped with a minimum set of peripherals to allow the user to experience the power of the processor and also offers access to many of the interfaces and allows for the use of add-on boards called capes, to add many different combinations of features. A user may also develop their own board or add their own circuitry. Chipset Features Texas Instruments Sitara AM3358 1GHz ARM® Cortex-A8 SGX 3D Graphics Engine NEON floating-point accelerator 2×32-bit 200-MHz programmable real-time units (PRUs) Board Features Memory SDRAM: 512MB DDR3L 800MHZ Onboard Flash: 4GB, 8bit Embedded MMC (eMMC) SD/MMC Connector for microSD Power management:TPS65217C PMIC is used along with a separate LDO to provide power to the system Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header Power Source miniUSB USB or DC Jack 5VDC External Via Expansion Header Connectivity High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated 10/100M Ethernet (RJ45) User Input / Output Reset Button Boot Button Power Button LED power indicator 4 user configurable LEDs Video/Audio Interfaces HDMI D type interface LCD interface Stereo audio over HDMI interface Expansion Interfaces via 2x 46 pin headers LCD, UART, eMMC ADC, I2C, SPI, PWM Compact Size of a Mint Tin Design Sources Design: https://openbeagle.org/beagleboard/beaglebone-black Quick Start : https://docs.beagle.cc/latest/intro/support/getting-started.html Latest Software Images: https://www.beagleboard.org/distros Document: https://docs.beagle.cc/latest/boards/beaglebone/black Optional Modules BB-VIEW CAPE：An extension board For Beaglebon Black add LCD And I/O BB-VIEW LCD8000-70T (Must work with BB-VIEW For Beaglebone Black) 800*480 LCD With Resistive Touch LCD8000-70T
