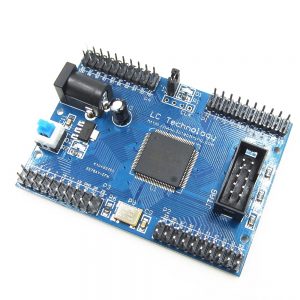

Description The MAX II EPM240 CPLD development board is ideal for prototyping and for learning about programmable logic devices. Features Better layout. Connectors around edges of board lets you make your own shield / add-on boards JTAG connector Can be easily programmed using the Byte Blaster or USB Blaster (also available on our website) Flexible I/O interface supporting 3.3 V, 2.5 V, 1.8 V, and 1.5 V logic levels High speed operation, up to 150 MHz InstantOn, non-volatile storage On board power regulator (works with 5 V power adapters) On-board oscillator Power on/off switch Technical Specifications CPLD Part Number: EPM240T100C5N Power Input: 5V Barrel Connector Logic elements: 240 On Board Clock Source: 50MHz Dimensions: 2.76 in x 1.97 in x 0.47 in (7.0 cm x 5.0 cm x 1.2 cm) Weight: 21g Documents and Downloads Altera MAX II Family Introduction.pdf EPM240 Minimal Development Board Schematic.pdf EPM240 Minimal Development Board Example.zip MAX II Device Family Datasheet.pdf EPM240MAINBOARD Schematic Diagram.pdf Related Tools Altera USB Blaster (Compatible) Mini Programmer Debugger Package Includes 1x Altera MAX II EPM240T100C5N CPLD Development Board
