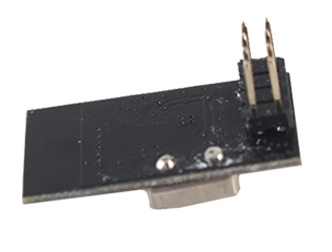

Ai Thinker NF-01-N Wireless Transceiver is a 100mW power 2.4G wireless module with high airspeed (up to 2Mbps), SPI interface, a pure hardware module for transceiver and it has high stability, high cost performance, good spectrum test characteristics, small Volume, using all industrial grade components. NF-01-N can be widely used in various Internet of Things applications, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc. The NF-01-N is packaged in DIP-8. It can be quickly connected to existing products, whether it is for learning or mass production. It can be directly inserted and removed without welding. It is very convenient to use. Features: DIP-8 ultra-small package built-in 2.4G antenna, compact size, easy to use Supports six channels of data reception Supports general modulation methods such as GFSK/FSK Supports 2Mbps/1Mbps/250Kbps data rate Multi-frequency point: 126 frequency points to meet the needs of multi-point communication and frequency hopping communication Internally integrated high PSRR LDO Wide supply voltage range: 1.9~3.6V Average emission current as low as 110mA Receive sensitivity: -96dBm@250kbps Maximum transmit power: 7dBm 4-wire SPI interface with speeds up to 10MHz Internally integrated intelligent ARQ baseband protocol engine Transceiver data hardware interrupt output Support 1bit RSSI output Package includes: 1 x Ai Thinker NF-01-N Wireless Transceiver Module SKU: PGI-00648408 Category: AI Thinker Esp Wifi Modules
