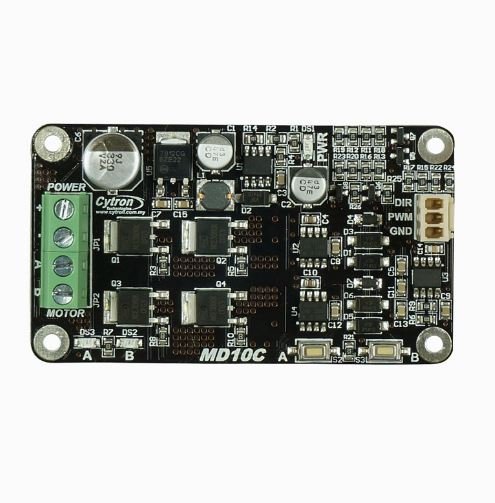

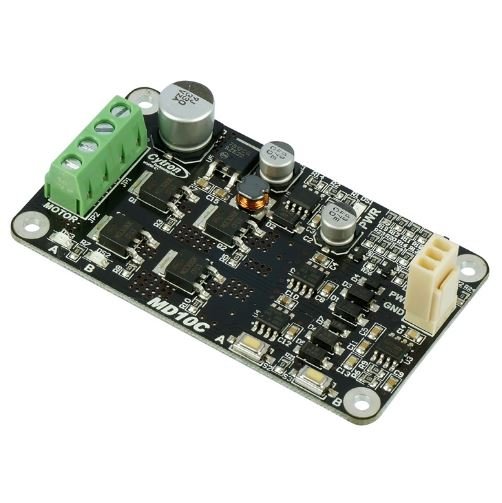

Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C

This is Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C. The MD10C is a newer version of the MD10B which is designed to drive high current brushed DC motor up to 10A 13A continuously. It offers several enhancements over the MD10B such as support for both locked-antiphase and sign-magnitude PWM signal as well as using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay. Features: Bi-directional control of 1 brushed DC motor. Support motor voltage ranges from  5V to 25V. Maximum current up to 13A continuous and 30A peak (10 seconds). 3.3V and 5V logic level input. Solid state components provide faster response time and eliminate the wear and tear of the mechanical relay. Fully NMOS H-Bridge for better efficiency and no heat sink is required. Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency). Support both locked-antiphase and sign-magnitude PWM operation. The new MD10C can be powered from a single power source and external Vin is not required. Package includes: 1 x Cytron Enhanced 13Amp DC Motor Driver 30A peak  MD10C SKU: PGI-002777 Category: Motors | Drivers | Actuators Categories
