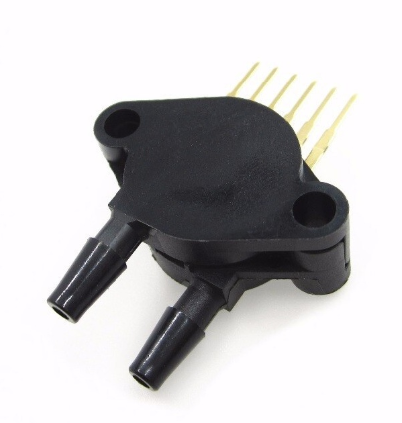

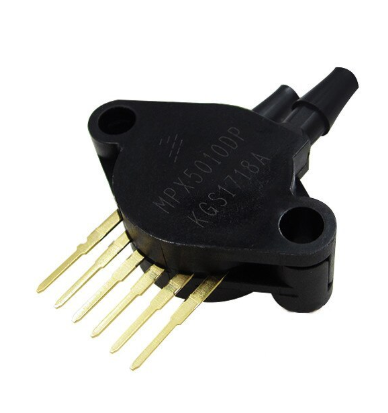

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor module is a dual port, an integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is state of the art monolithic silicon pressure sensor; designed for a wide range of applications. It is ideally suited for a microprocessor; and microcontroller-based system. This transducer combines advanced micromachining techniques; thin-film metallization, and bipolar processing to provide an accurate; high-level analog output signal that is proportional to applied pressure. The axial port has been modified to accommodate industrial grade tubing. Prayog India.in have various kinds of Pressure sensors; for more pressure sensors. Features : On-chip signal conditioned, temperature compensated and calibrated. Differential configuration. 5.0% maximum error over 0°C to 85°C. Durable epoxy unibody. Temperature compensated over -40°C to 125°C. Patented silicon shear stress-strain gauge. Pressure range from 0KPa to 10KPa. Supply voltage range from 4.75VDC to 5.25VDC. The sensitivity of 450mV/kPa. Response time of 1ms. Mounting hole diameter: M4 x 11 (height). Applications : Sensing & Instrumentation. Consumer Electronics. Portable Devices. Automation & Process Control. Medical Package Includes : 1 x MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor. SKU: PGI-00456141 Category: Load / Pressure / Force / Flex Sensor
