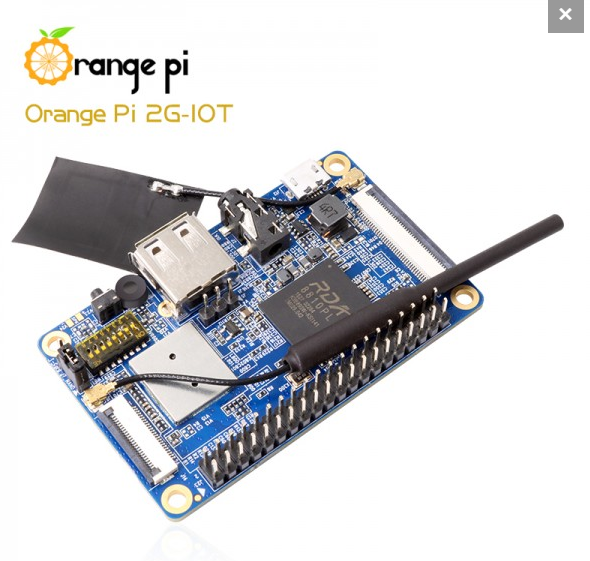

Orange Pi 2G IoT Board It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Raspberry Pi image. It uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM. What can I do with Orange Pi 2G-IOT? Build… A computer A wireless server Games Music and sounds HD video A speaker Android Scratch Pretty much anything else, because Orange Pi 2G-IOT is open source Who’s it for? Orange Pi 2G-IOT is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you. Hardware specification CPU ARM Cortex-A5 32bit GPU Separate graphic processor, Vivante’s GC860 support OpenGLES1.1/2.0 support OpenVG1.4 support DirectFB support GDI/DirecShow 30M Triangle/s, 250M Pixel/s Memory (SDRAM) Integrated 256MB LPDDR2 SDRAM Onboard Storage TF card / Integrated 500MB 8Bit 1.8V 4K SLC Nand Flash Onboard WIFI BT RDA5991, WIFI BT 2G model The four frequency single card GSM/GPRS Dedicated accelerators SIM card Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC, 3.5 mm Jack Video Outputs LCD Audio Outputs 3.5 mm Jack, FM, SPEAK（Optional） Power Source USB OTG can supply power Battery input can supply power（Optional） GPIO(1×3) pin UART, ground. USB 2.0 Ports One USB 2.0 HOST, One USB 2.0 OTG Buttons Power Button(SW602) Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B LED Power led Supported OS Android, Ubuntu, Debian, Rasberry Pi Image Interface definition Product size 67 mm × 42mm Weight 35g Category: Single Board Computer
