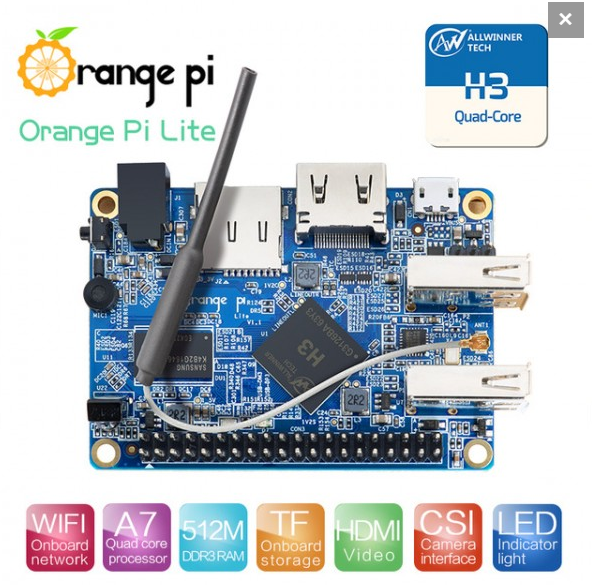

What’s Orange Pi Lite？ It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM. What can I do with Orange Pi Lite? You can use it to build… A computer A wireless server Games Music and sounds HD video A speaker Android Scratch Pretty much anything else, because Orange Pi is open source Who’s it for? Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you. Hardware specification CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K GPU ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 Memory (SDRAM) 512MB DDR3 (shared with GPU) Onboard Storage TF card (Max. 64GB) / MMC card slot Wifi Antenna Yes Video Input A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Audio Output HDMI Power Source DC input, USB OTG input don’t supply power USB 2.0 Ports Two USB 2.0 HOST, one USB 2.0 OTG Buttons Power button Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B GPIO(1×3) pin UART, ground. LED Power led & Status led Key POWER Supported OS Android Lubuntu, Debian, Rasberry Pi Image Interface definition Product size 69mm × 48mm Weight 60g Category: Single Board Computer
