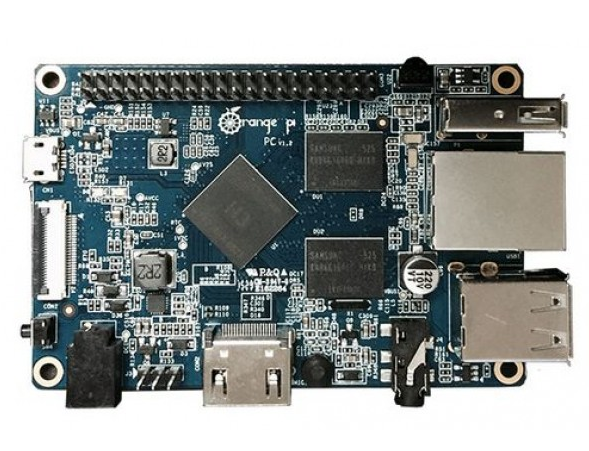

Orange Pi PC What’s Orange Pi PC？ It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM What can I do with Orange Pi PC? Build… A computer A wireless server Games Music and sounds HD video A speaker Android Scratch Pretty much anything else, because Orange Pi PC is open source Who’s it for? Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you. Hardware specification CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K GPU ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 Memory (SDRAM) 1GB DDR3 (shared with GPU) Onboard Storage TF card (Max. 64GB) / MMC card slot Onboard Network 10/100M Ethernet RJ45 Video Input A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS Audio Output 3.5 mm Jack and HDMI Power Source DC input can supply power, but USB OTG input don’t supply power USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG Buttons Power Button(SW4) Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B GPIO(1×3) pin UART, ground. LED Power led & Status led Key IR input, POWER Supported OS Android Ubuntu, Debian, Rasberry Pi Image Interface definition Product size 85 mm × 55mm Weight 38g Category: Single Board Computer
