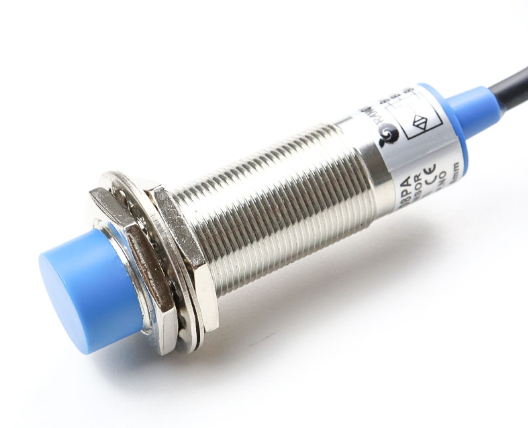

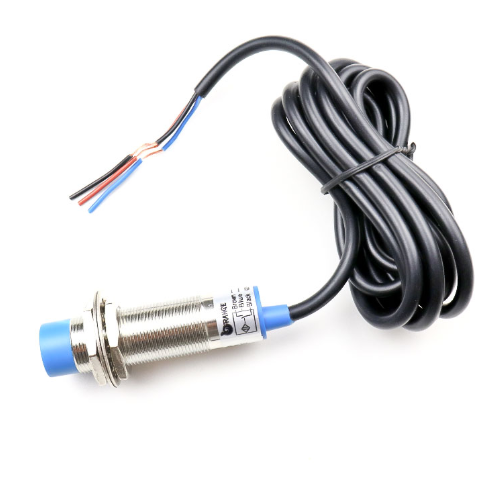

Orange 8mm PNP Inductive Proximity Sensor RM18 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern. This M18 indicates a cylinder type whose diameter is 18mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 8mm. The sensor has 3 wire and NO (Normally open) type output with RED LED indicator. The Inductive Proximity Sensor application: Mine metallurgy. Plastics, textile and Chemical Industry. Light industry, tobacco, electric power, railway, and war industry. Features: IP67 protection structure (IEC standard). Compact volume. High precision of repeated location. Diversified exterior. Good performance of anti-interference. Many output forms. High on-off frequency. Wide voltage range. Dustproof, vibration proof, waterproof and oil proof. With short-circuit protection and inverted connecting protection. Long service life. Package Includes: 1 x Orange 8mm PNP Inductive Proximity Sensor RM18 DC6~36V (Unshielded). SKU: PGI-00650669 Category: Orange Proximity Sensor
