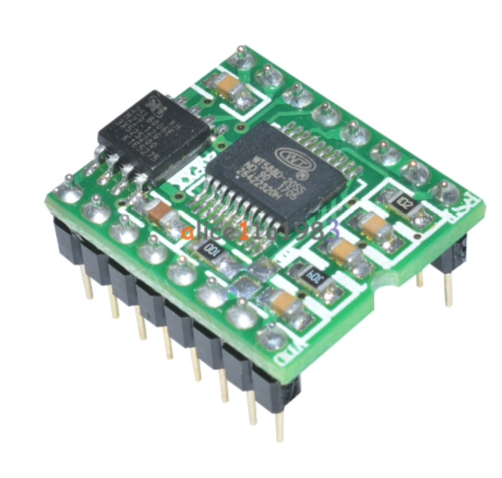

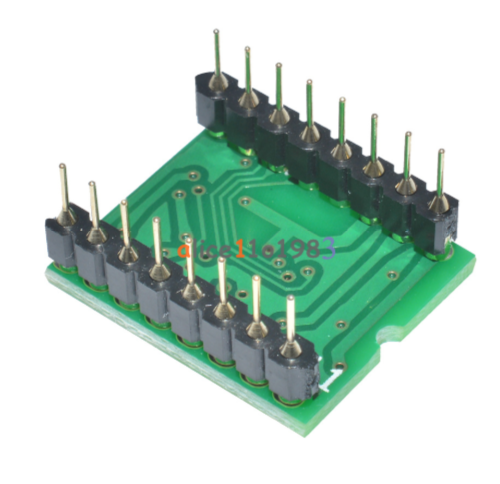

WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino

This is WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino Boards. Module for playing MP3 and WAV files on a WT588D microcontroller with built-in memory. Easy-to-use file preparation software, easy download, and simple control of audio playback with decent quality. There is a PWM output for directly connecting a small speaker. On the basis of the module, it is possible to build sound signaling devices, auto-informers, warning devices, answering machines and much more. Features : Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20, and LQFP32 form Built 13Bit/DA converter, and 12Bit/PWM output PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant support DAC / PWM output of two ways; Support for loading WAV audio formats; USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash; Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode; Support load 6K ~ 22KHz audio sampling rate Up to 500 segments can be loaded for editing audio.  Package Includes :  1 x WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino. Useful Link WT588D-16P Forum Topic with Arduino Code Example Category: Audio Module
