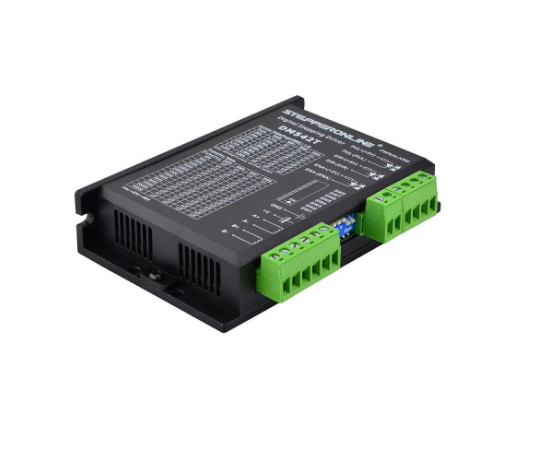

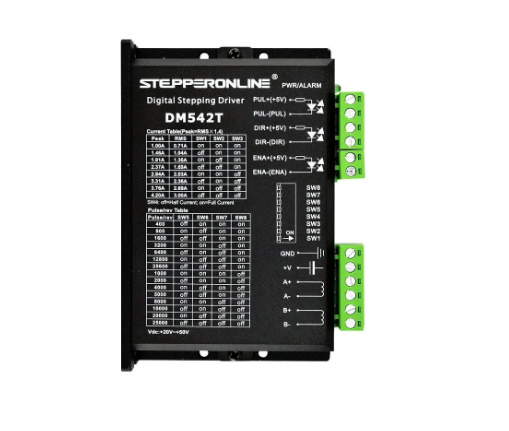

The DM542T is a fully digital stepper driver developed with an advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offer a quick setup to optimal modes with different motors. Compared with traditional analogue drives, DM542T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542T an ideal choice for high requirement applications. It is highly recommended to work as NEMA 17 driver and NEMA 23 driver. Features: 20KHz chopping frequency Optical isolation signal input Output current DIP switch is adjustable Bipolar constant current chopping method High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200 TTL input signal compatible,while accepting differential signal input 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used The drive uses a discrete component structure that supports two-phase 4-wire, 6-wire, and 8-wire as long as there is no overvoltage and wiring Specification: Power supply: DC 24-60 (V) Current maximum: 4.5A Output phase current:1 .5A-4.5A Logic input current: 1 0-20mA Operating temperature: -15°— 45° Size: 11.7*8.5cm/4.61*3.35inch Package Includes: 1 x DM542 Digital Stepper Motor Driver SKU: PGI-001165428 Category: Motor Driver
