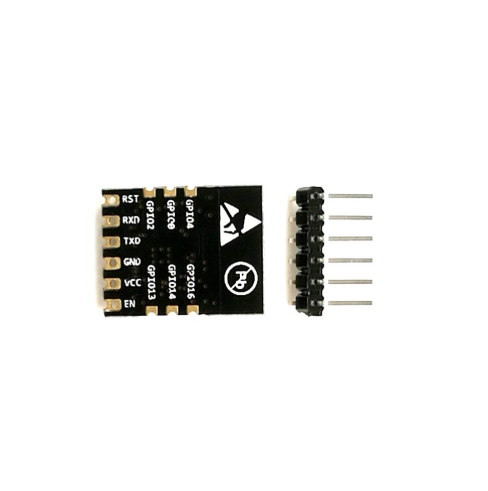

Mini Ultra-Small size ESP-M3 Serial Wireless WiFi Transmission Module Fully Compatible with ESP8266

The WiFi module ESP-1 is manufactured by using a high-performance chip ESP8285. This small chip is encapsulated an enhanced Tensilica’s L106  diamond series 32-bit kernel CPU with an SRAM. Thus, ESP8285 has the complete function Wi-Fi function; it not only can be applied independent but can be used as a slave working with other host CPU. When ESP8285 is applied as a slave, it can start from the onboard Flash. The built-in high-speed buffer is not only benefiting improve the system performance but optimizing the store system. In addition, ESP8285 can be used as a Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design. Features:  Ultra-small size. Support serial to WiFi Wireless transparent transmission. Long distance transmission with ultra-low power. Support outboard antenna. Bearing high temperature to 125 ºC, compared to the 85ºC for ESP8266. Module size:24.5mm x 14mm. Derived from ESP8266, ESP8285 has a flash memory of 1MB Totally compatible with ESP8266 WiFi support 802.11 b/g/n/e/i High temperature resistant, working temperature: -40℃-125℃ SOC characteristics: Built-in Tensilica L106 ultra-low power consumption 32-bit CPU,  the main frequency can be 80MHz and 160MHz,  also support RTOS; Built-in TCP/IP protocol stack; Built-in 1 channel 10-bit high precision ADC; The outside interfaces have HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO; The deep-sleep current is about 10uA, and the cut-off current is smaller than 5uA; Can be wake-up within 2 ms, and connect to transmit data package; the consumer power is smaller than 1.0mW (DTIM3) when at standby status; built-in 1M byte for SPI Flash. Wi-Fi characteristics: Support 802.11 b/g/n/e/i Support three modes: Station, SoftAP, and SoftAP STA; Support Wi-Fi Direct(P2P); Support hardware acceleration for CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), API(SMS4), WEP(RC4), CRC; P2P find, P2P GO mode/GC mode and P2P power management; WPA/PA2 PSK and WPS; Support 802.11 i  security: pre-certification and TSN; Support 802.11n (2.4 GHz); 802.1h/RFC1042 frame encapsulation; Support seamless roam; Support AT remote updation and cloud OTA update; Support SmartConfig function for Android and iOS device SmartConfig. Application: Serial Transparent transmission; WiFi probe; Smart power plug/Smart LED light; Mesh networks; Sensor networks; Wearable electronics; Security ID label; Wireless location recognition; Wireless location system beacon; Industrial wireless control. Package Includes: 1 x DOIT Mini Ultra-Small size ESP-M3 Serial Wireless WiFi Transmission Module 1 x Header Pins Category: Artificial Intelligence
