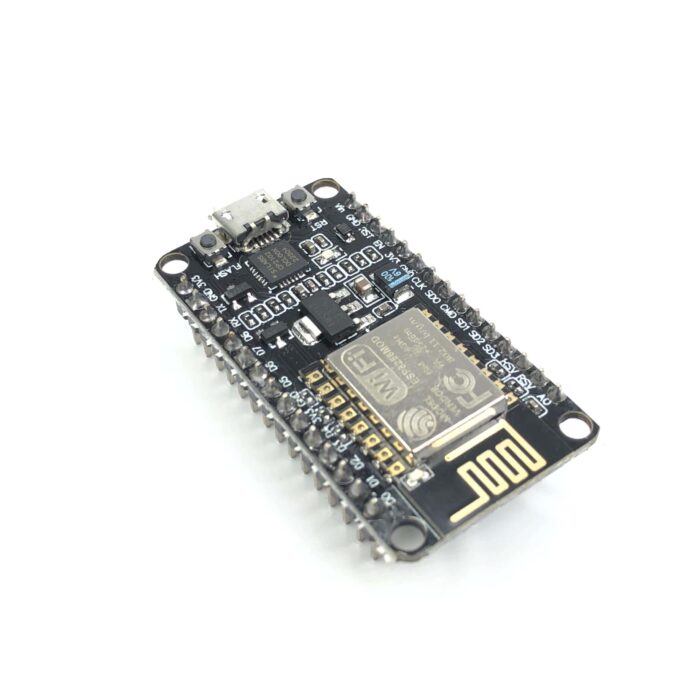

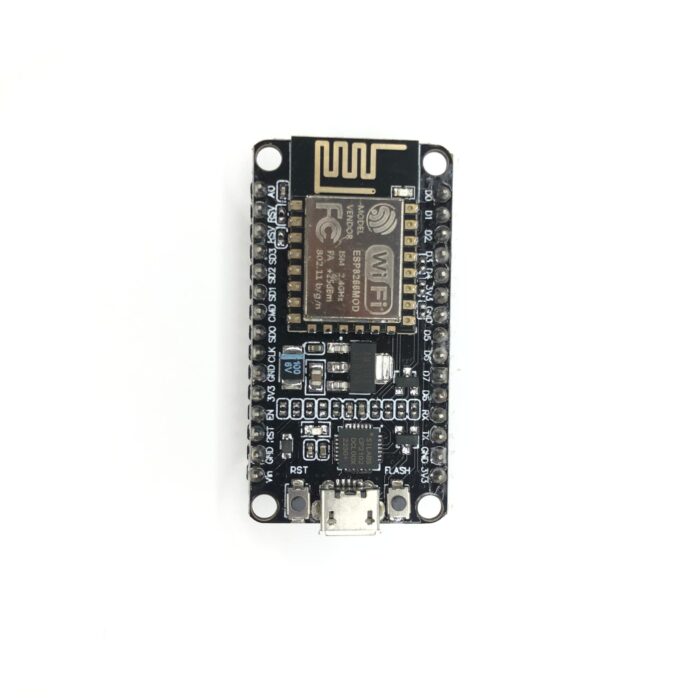

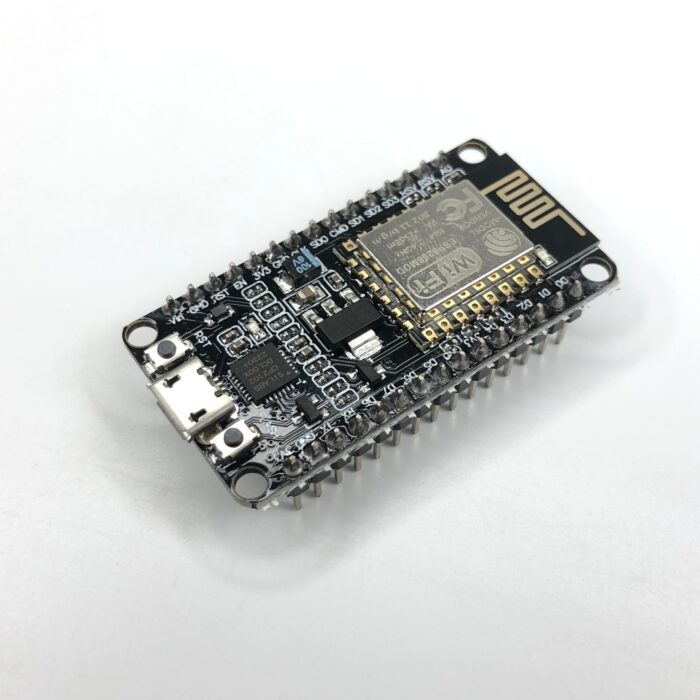

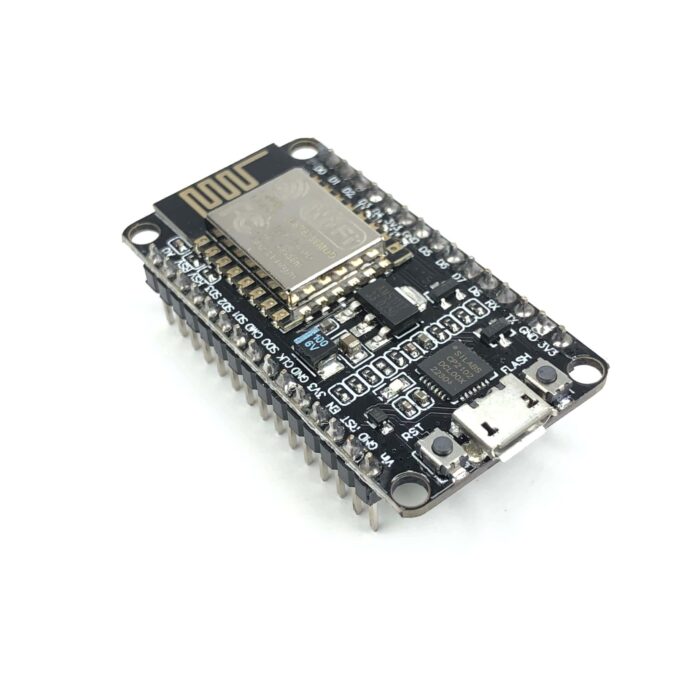

ESP8266 NodeMCU CP2102 Board New Development Board

The ESP8266 NodeMCU CP2102 board has ESP8266 which is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy a minimal PCB area. The ESP8266 NodeMCU development board – a true plug-and-play solution for inexpensive projects using WiFi. The module arrives pre-flashed with NodeMCU firmware so they’re ready to go – just install your USB driver (below). ESP-12 Lua Nodemcu WIFI Dev Board Internet Of Things board contains a full ESP8266 WiFi module with all the GPIO broken out, a full USB-serial interface, and a power supply all on the one breadboard-friendly package. This board is pre-flashed with NodeMCU – a Lua-based firmware for the ESP8266 which allows easy control via a neat scripting language – Lua – so you’re ready to go in just a few minutes. The ESP-12 Lua Nodemcu WIFI Dev Board Internet Of Things with ESP8266 is an all-in-one microcontroller WiFi platform that is very easy to use to create projects with WiFi and IoT (Internet of Things) applications. The board is based on the highly popular ESP8266 WiFi Module chip with the ESP-12 SMD footprint. This WiFi development board already embeds in its board all the necessary components for the ESP8266 (ESP-12E) to program and upload code. It has a built-in USB to serial chip upload codes, 3.3V regulator, and logic level converter circuit so you can immediately upload codes and connect your circuits. Specification: Color: Black Chip Module: CP2102 Working Temperature: -40 ℃ ~ 125 ℃ Power Input: 4.5V ~ 9V (10VMAX), USB-powered Drive Type: Dual high-power H-bridge driver Current: continuous transmission ≈70mA (200mA MAX) Standby: <200uA Features: A great set of tools to develop ESP8266. ESP8266 has IO Pin. ESP8266 full IO mouth leads directly to download without resetting. Open-source, interactive, programmable, low cost, simple, smart, WI-FI enabled. Greatly speed up your IOT application developing process.
