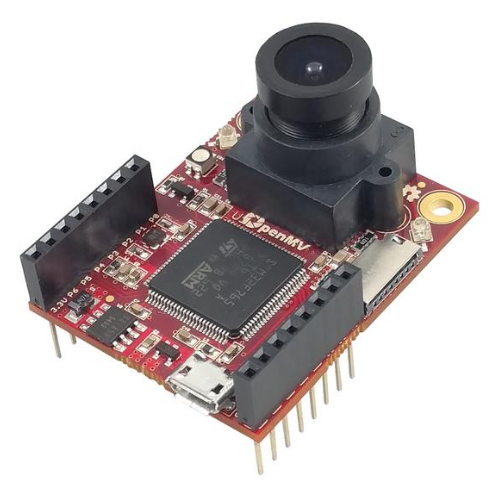

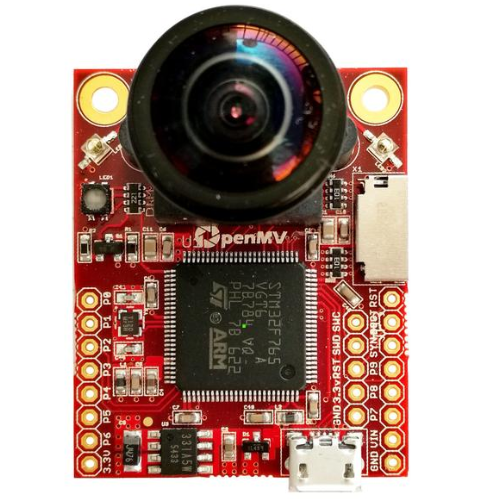

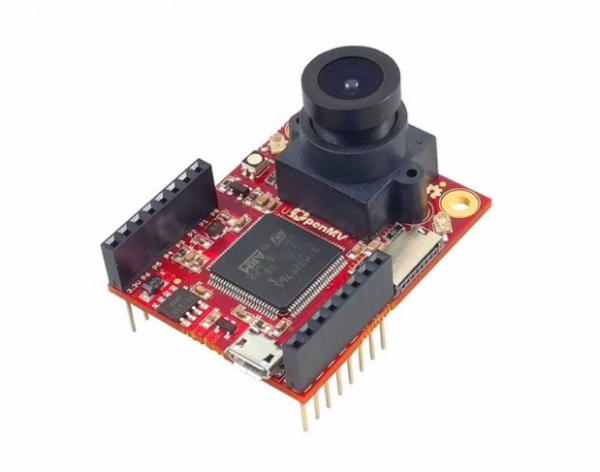

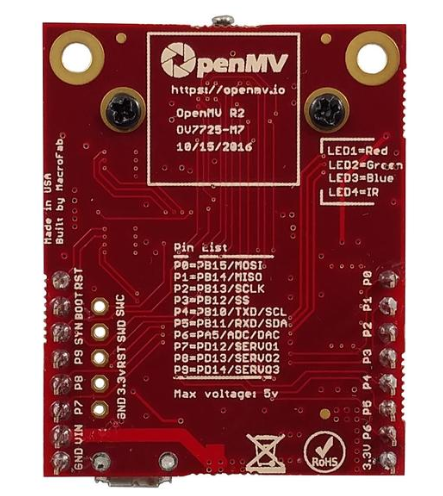

The OpenMV Cam M7 Smart Vision Camera is a small, low power, microcontroller board which allows you to easily implement applications using machine vision in the real world. You program the OpenMV Cam in high-level Python scripts (courtesy of the MicroPython Operating System) instead of C/C . This makes it easier to deal with the complex outputs of machine vision algorithms and working with high-level data structures. But, you still have total control over your OpenMV Cam and it’s I/O pins in Python. You can easily trigger taking pictures and video on external events or execute machine vision algorithms to figure out how to control your I/O pins. The OpenMV Cam features: The STM32F765VI ARM Cortex M7 processor running at 216 MHz with 512KB of RAM and 2 MB of flash. All I/O pins output 3.3V and are 5V tolerant. The processor has the following I/O interfaces: A full-speed USB (12Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in. A μSD Card socket capable of 100Mbs reads/writes which allows your OpenMV Cam to record video and easy pull machine vision assets off of the μSD card. An SPI bus that can run up to 54Mbs allowing you to easily stream image data of the system to either the LCD Shield, the WiFi Shield, or another microcontroller. An I2C Bus, CAN Bus, and an Asynchronous Serial Bus (TX/RX) for interfacing with other microcontrollers and sensors. A 12-bit ADC and a 12-bit DAC. Three I/O pins for servo control. Interrupts and PWM on all I/O pins (there are 10 I/O pins on the board). And, an RGB LED and two high power 850nm IR LEDs. The OV7725 image sensor is capable of taking 640×480 8-bit Grayscale images or 640×480 16-bit RGB565 images at 60 FPS when the resolution is above 320×240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself. Pinout: Features: STM32F765VI Arm® Cortex® M7 processor runs at 216MHz with 512KB of RAM and 2MB of flash microSD card socket capable of 100Mbs read or write SPI bus runs up to 54Mbs allowing easy stream image data I2C bus, CAN bus, and asynchronous serial bus (TX/RX) for interfacing with microcontrollers and sensors 12-bit ADC and 12-bit DAC Three I/O pins for servo control Interrupts and Pulse Width Modulation (PWM) on all 10 I/O pins RGB LED and two high power 850nm IR LEDs OV7725 image sensor capable of 640 x 480 8-bit grayscale or 320 x 240 16-bit RGB565 images at 30 FPS OpenMV camera comes with a 2.8mm lens on a standard M12 lens mount Applications: Frame differencing Color tracking Face detection Eye tracking Optical flow QR code detection/decoding Data matrix detection/decoding Linear barcode decoding AprilTag tracking Line detection Circle detection Rectangle detection Template matching Image capture Video recording Package Includes: 1 x OpenMV Cam M7 Module 2 x 8*1 Burg Pins (Straight) 6 Months Warranty This item is covered with supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects. What voids warranty: If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way. SKU: PGI-0073957 Categories: Camera, Camera Sensor
