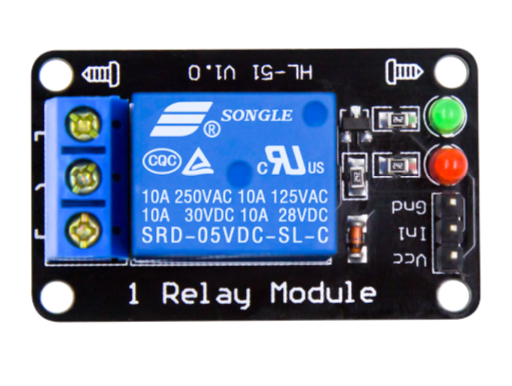

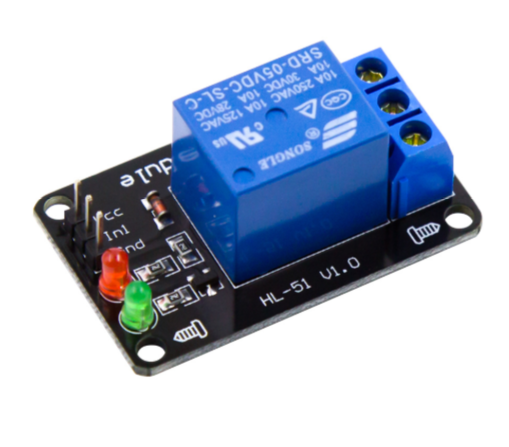

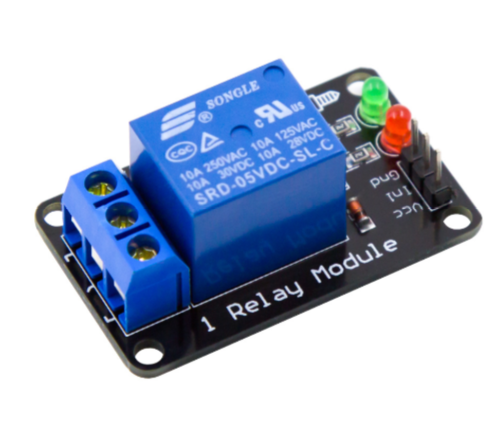

It is a 5V 1 Channel Without Light Coupling Relay. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical. Features: The 8550 transistor drive, driveability. A fixed bolt holes for easy installation. It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red) Relay control interface by single-chip IO. Low-level suction close, high-level release. Easy to use, simple 3 line structure. Package Includes: 1 x 5V 1 Channel Without Light Coupling Relay. SKU: PGI-00618455 Category: Relay
