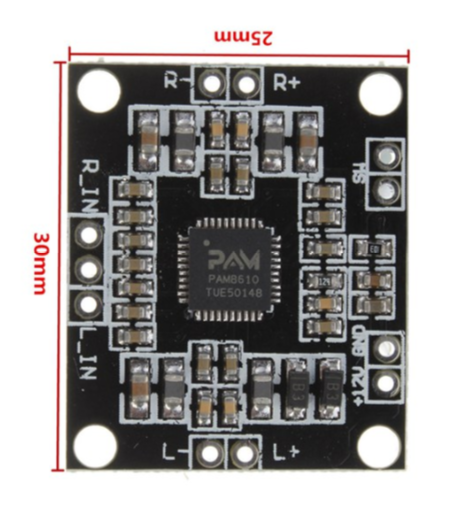

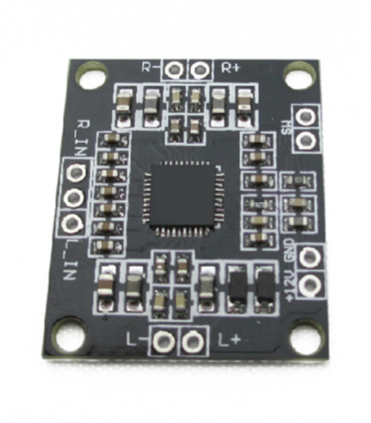

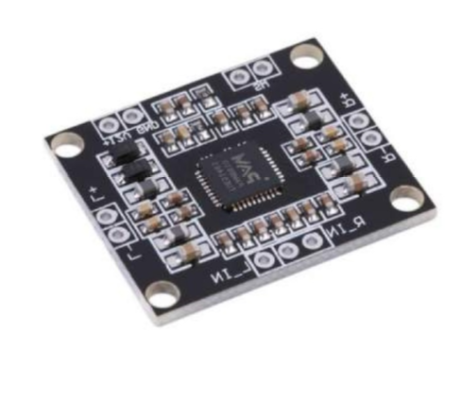

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

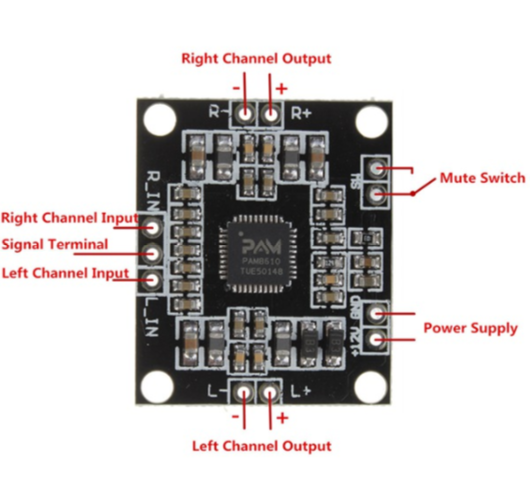

The PAM 8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a 32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs. The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40pin QFN 6 x 6 mm package. How to use: The power supply voltage limit is 16.5V, do not use more than this voltage. The power supply is recommended for 12v, 3A power supply filter better. 4-8 inch stereo speakers recommended.  Do not short-circuit the audio output to each other or shorted to ground. Carefully check before electricity, ensure the wiring is correct before electricity.  Features : This plate with a switching function, SW short, will turn off the power amplifier. Working Mode: Class D (PWM modulation type). Package Includes : 1 x PAM 8610 Dual Channel Stereo Class D Digital Amplifier Board. SKU: PGI-0043918 Category: Break out Boards
