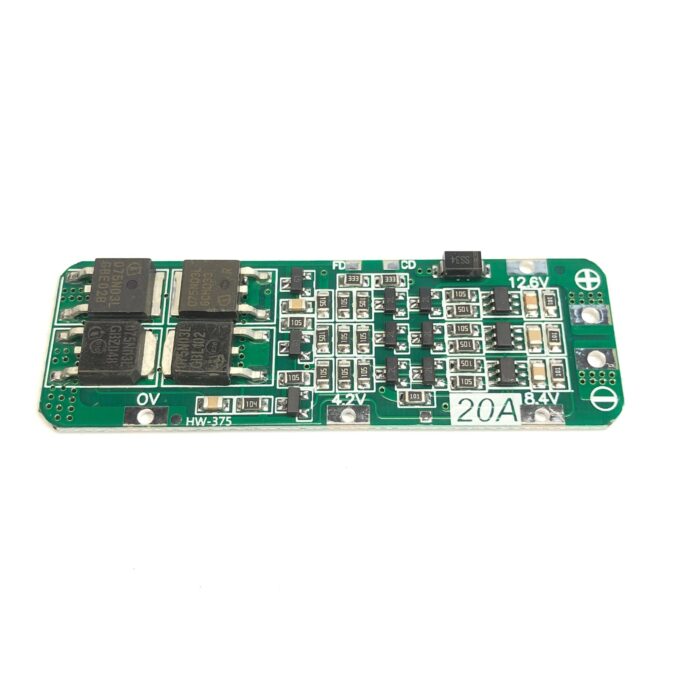

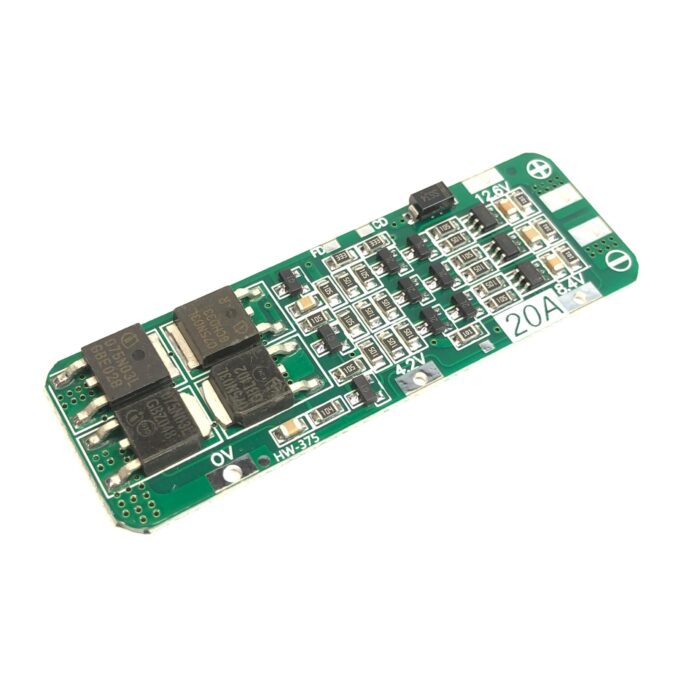

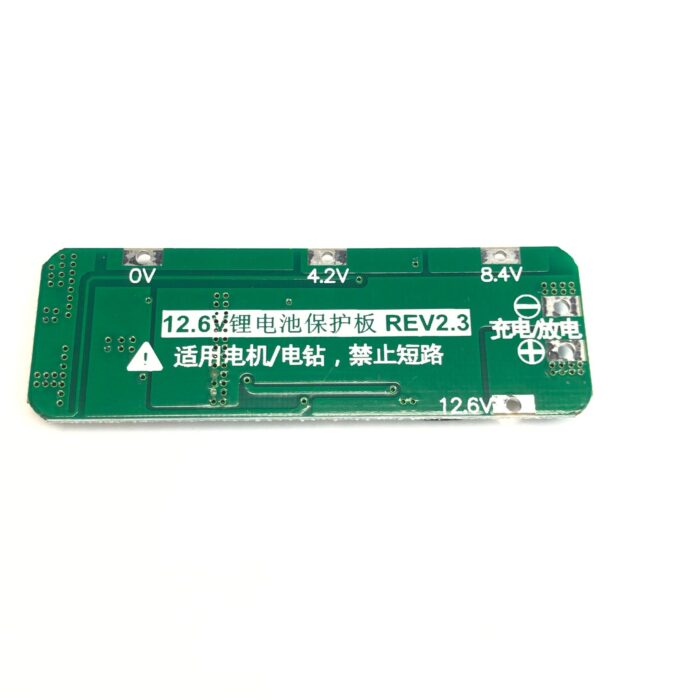

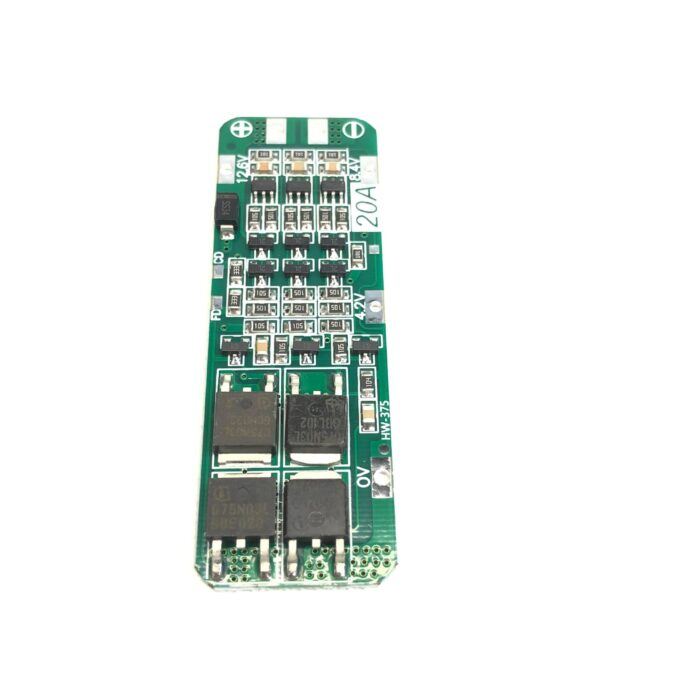

The 3 Series 20A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 20A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use). The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance). The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself. Specification: Battery: 3 Cell Overcharge Detection Voltage: 4.25V ± 0.025 Discharge Voltage Range: 2.3 ~ 3.0V ± 0.05V Continuous Charge Current: 20A Operational Temperature: -40 ~ 50°C Features: 3S 11.1V 12.6V 20A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery). Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery). Continuous discharge current (upper limit): 20A (if the cooling environment is not good, please reduce the load current use). Continuous charge current (upper limit): 20A. Suitable for the drills with starting current below 80A, power 135W below.
