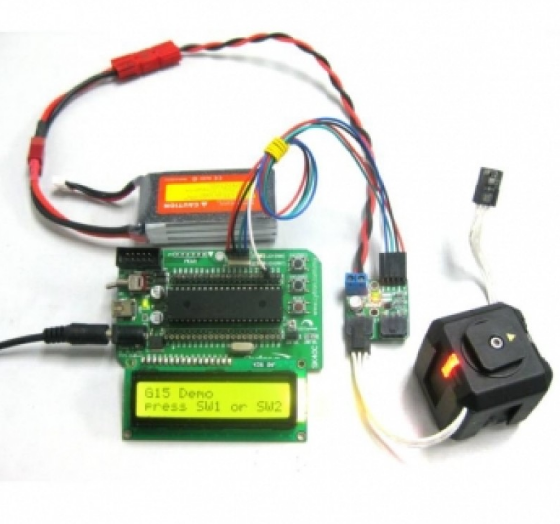

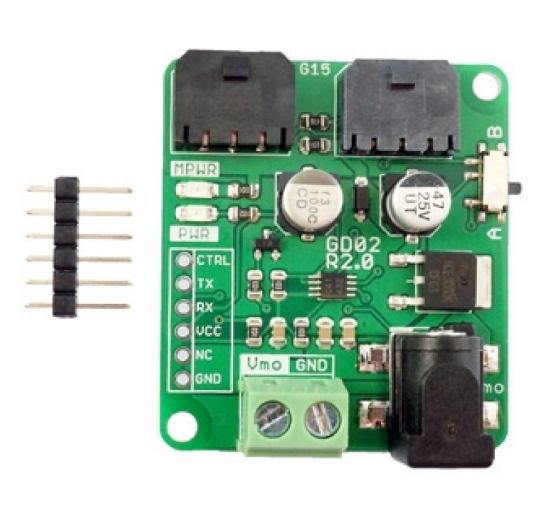

This is G15 Driver for G15 Cube Servo. G15 Driver (GD02) is used to drive G15 Cube Servo. It is a Full to Half Duplex Communication Converter board. It converts UART full-duplex communication to half-duplex single line communication which is required by G15 Cube Servo. GD02 has two ports for the Cube Servo. G15 Cube servo is a serially controlled servo motor which can be daisy-chained. G02 has a separated port connector for motor’s power supply. GD02 offers a simple and easy way to use to control G15 Cube Servo with UART communication from any microcontroller board for example. Improvements in Rev2.0 Polarity protection for power input to Cube Servo. Additional DC jack socket for Vin, using DC adapter will be easier. Compatible UART signal port with UC00A. Control from the computer will be easier. Optional slide switch to select the logic for UART flow control, making it compatible with Arduino G15 shield library. Features : 2 x G15 Cube Servo ports (can be daisy chained to more servos) External power terminal for Cube Servo. 2 LEDs as logic power and servo power indicators. 3.3V and 5V signals compatible. Package Includes : 1 x G15 Driver 1 x 1*6 Burg Pin(Straight) Features : Arduino reset button 4 x G15 Cube Servo ports. External power port for a servo with polarity protection Stackable I/O header pin Selectable digital pins for the control pin with mini jumpers TX and RX indicator LEDs to show communication activities, only on Rev2.0. Selectable Serial pins, Either hardware serial or software serial via mini jumpers, only on Rev2.0 2 LEDs as logic and servo power indicators Package Includes : 1 x Cytron G15 Shield SKU: PGI-0026016 Category: Arduino Shield
