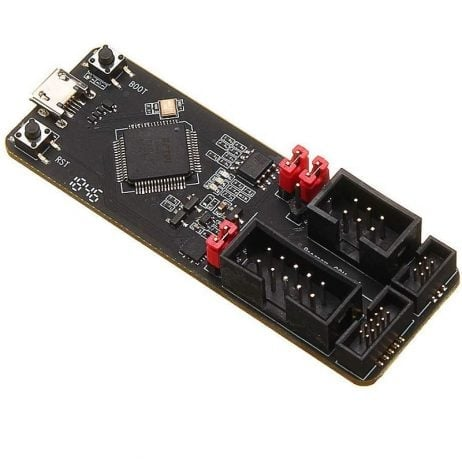

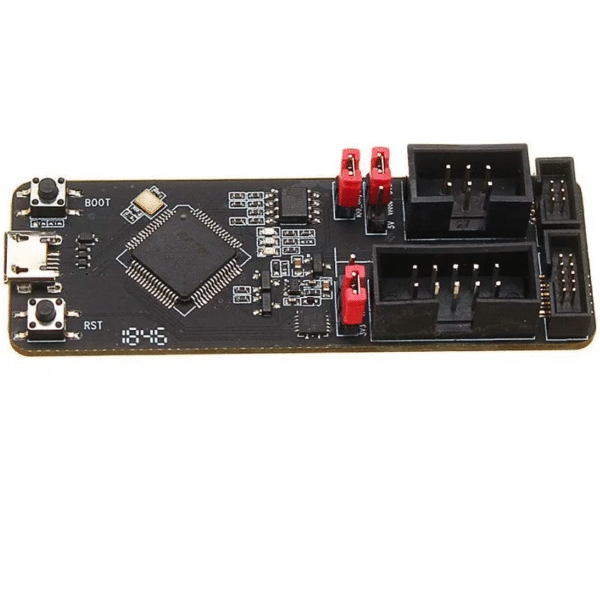

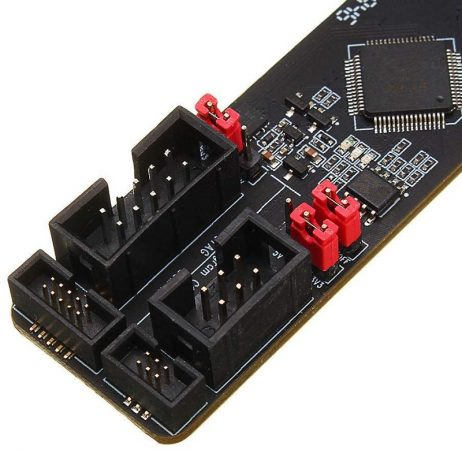

Description Espressif ESP-Prog is a development and debugging tool with automatic download firmware, serial communication, JTAG online debugging, and other functions. The automatic download firmware and serial communication functions are available for the ESP8266 and ESP32 platforms, and the JTAG in-circuit debugging function is available for the ESP32 platform. Steps for usage: 1. Connect the Espressif ESP-Prog debug board and the USB port on the computer via a USB cable. 2. Install the FT2232HL chip driver on the computer side. The computer recognizes two ports, indicating that the driver has been successfully installed. 3. Use the Pin header to select the power supply output voltage on the Program/JTAG interface. 4. Connect the debug board and ESP product board with the gray cable. 5. Automatic download and JTAG debugging of the ESP32 product board can be achieved using official software tools or scripts.
