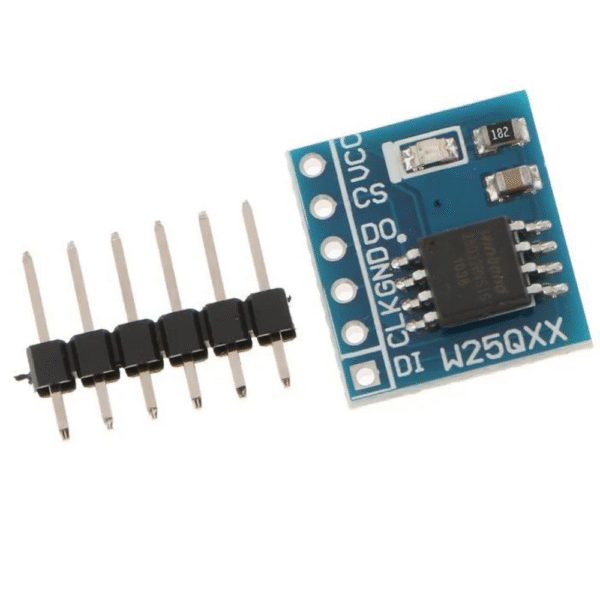

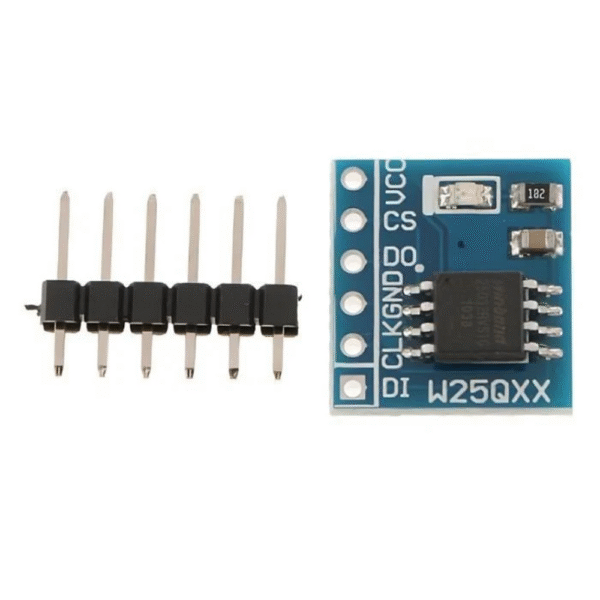

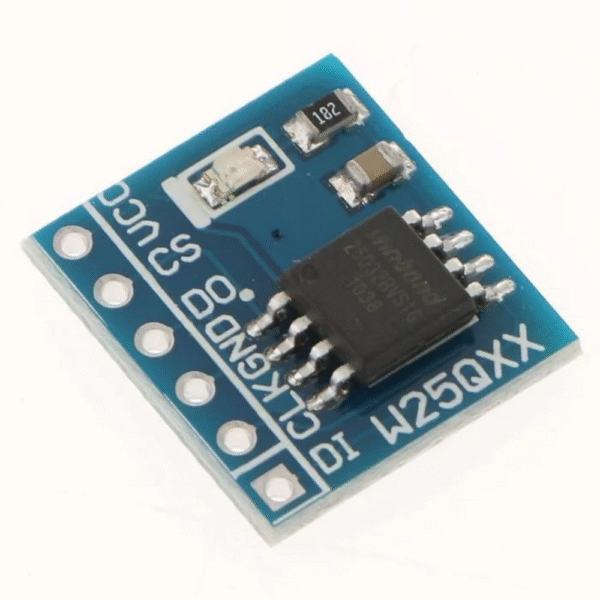

Description W25Q64 NorFlash Storage Module 64Mbit The 64Mbit 8MByte Data Flash module SPI Interface BV/FV solves the problem of insufficient storage space on systems with limited space. When compared to common Serial Flash devices, the 25Q series is very efficient and provides high flexibility and performance. As a result, this module is an excellent choice for temporary data storage. This integrated circuit is of high quality, has a large memory capacity, and consumes very little power. The module has numerous applications. For example, you can use to build devices that you can carry with you and store data with GPS (geographical location store) or acceleration in specific situations in the car. It can be used for data storage in the same way that a computer’s hard disc is; it is not volatile, and because it is solid-state, there is no risk of moving parts being damaged. The main benefit of the 25Q64FWSIG-1935Flash Memory Module is that it is already soldered onto a board, eliminating the need for the user to solder and making the doors accessible via DIP pins (attached to a pin bar). The matrix is organised efficiently into 32,768 programmable pages of 256 bytes each, where up to 256 bytes can be programmed at a time. Pages can be erased completely (entire chip) or in groups of 16 (4 KB in the industry), 128 (32 KB in block), or 256. It also has the ability to delete 2,048 sectors and 128 blocks. Smaller 4KB sectors allow for greater flexibility in applications requiring parameter and data storage.
