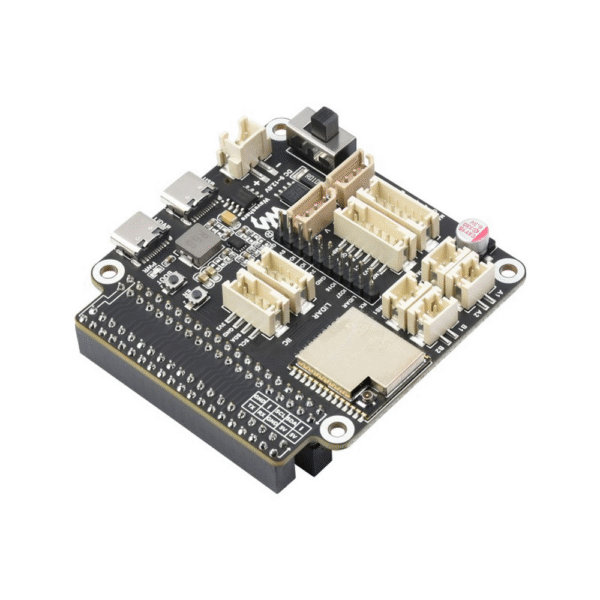

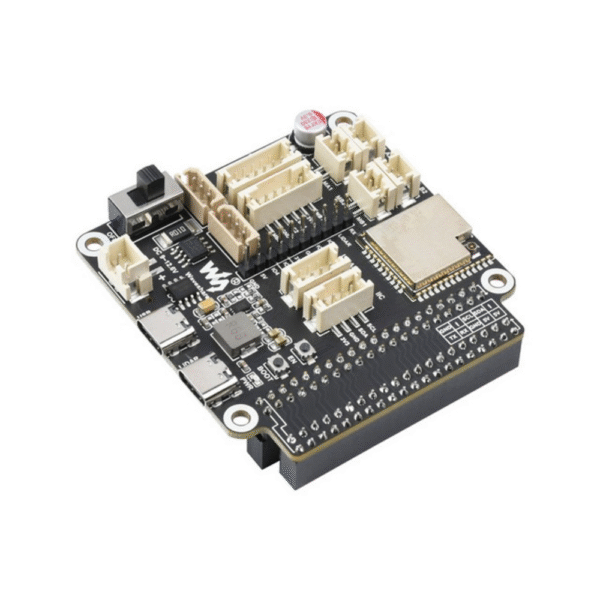

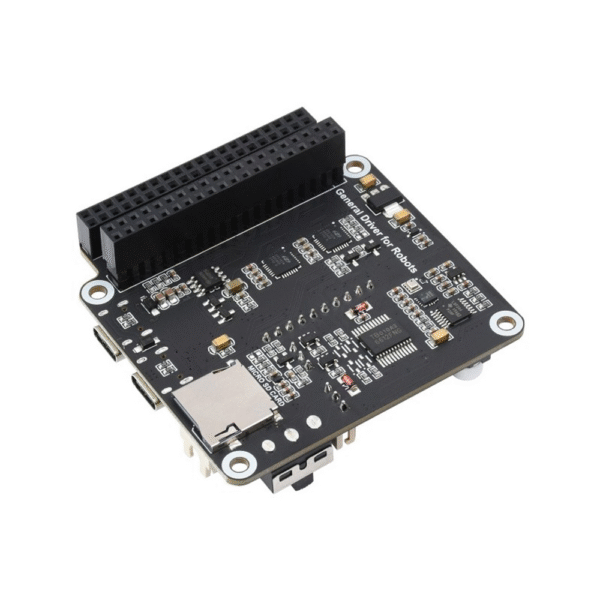

Description Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications Features: Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, Bluetooth and ESP-NOW Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback Onboard 9-axis IMU to obtain attitude and heading information at any time Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module Automatic download circuit for easy uploading programs Support input voltage/current monitoring Onboard TF card slot Onboard Laser Lidar interface and integrated UART to USB function I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices Adapting Multi-functional extended header for additional functions, such as controlling servos or relays Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or I2C Provides open-source demos and detailed tutorials for beginners, easy to get started
