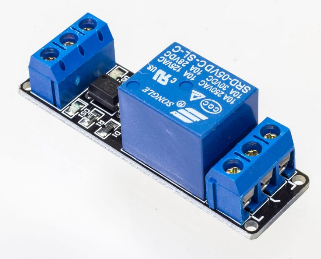

1 channel 5V 10A Relay Control Board Module with Optocoupler

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine. The inputs of 1 Channel 5V 10A Relay Module are isolated to protect any delicate control circuitry. The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. Note: On the high level and low level-triggered mode, friends who do not understand, have a look High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered a way; Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way  1-channel relay module connection. Features : High impedance controller pin Pull-down circuit for the avoidance of malfunction One normally closed contact and one normally open contact Triode drive, increasing relay coil Power supply indicator lamp Control indicator lamp With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation Package Include : 1 x 1 channel 5V 10A relay control board module with an optocoupler SKU: PGI-0025289 Category: Relay
